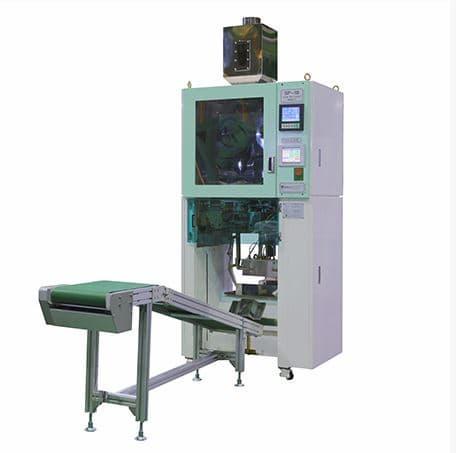

Automatic Rice Weighing Packing Machine (SP-10)

Features:

• - Weighing and packing time is 8 seconds.
• - Weighing and packing by one-touch
• - Suitable for various and small lot of production.
• - High accuracy with reliable electronic load cell
• - Packing capacity is 6bags/min(1~3kg), 5bags/min(4~8kg), 4bags/min(10kg)
• - Self diagnois funtion is built in to prerent trouble and to high accuracy.
• - Machine installation space is minimized with full automatic
• - Stainless steel is used for all parts wetted with rice or raw neterials for hygienic purpose

Specification:

• - Weighing Materials : Rice & Mixed Rice
• - Weighing Method : Load cell type 3step gates(1unit)
• - Weighing Range : 1kg ~ 10kg
• - Weighing Accuracy : ±4g (Minimum Graduation 1g)under of 10kg
• - Packing Capacity : 4~6bag/min
• - Control Method :Touch Screen & PLC
• - Packing Materials : PE, Laminate, Aluminium Coated Bags
• - Bag Size : Width - 190mm~400mm Length - 280mm~680mm
• - Magazine Capacity : 100~200 Bags
• - Sealing Method : Impulse Sealing-Width 3mm
• - Power Source : 1Phase, AC 220V, 1kw
• - Air Utility : 100NL/Minute, 6kgf/cm² (Compressor-1.5kw or above)
• - Machine Dimension : 930(W)x1200(D)x1850(H)
• - Machine Weight : Approx 350kg
• - Standard Accessory : Heater Line

Options:

• - Top Sealing
• - Printing device for year, month, date
• - Belt Conveyor
• - Air Compressor(1.5kw)
• - Semi System device (Chute, Foot Switch)
